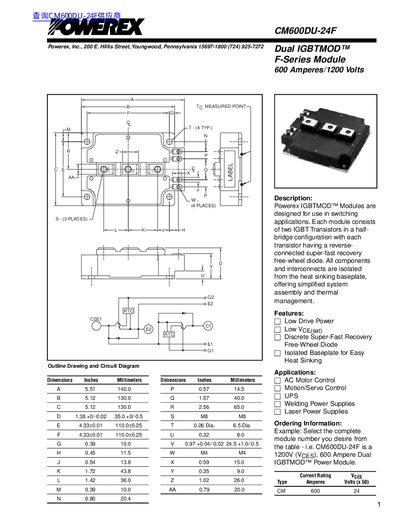

This document describes the features and characteristics of Powerex IGBTMOD™ modules. Each module consists of two IGBT transistors in a half-bridge configuration, with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.
The Powerex CM600DU-24F is a Dual IGBTMOD™ F-Series module designed for high-power switching applications. It consists of two IGBT transistors in a half-bridge configuration, each with a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate to simplify system assembly and thermal management. The module is rated for 600 Amperes and 1200 Volts.
| Collector-Emitter Voltage | 1200 Volts |
|---|---|
| Collector Current | 600 Amperes |
| Peak Collector Current | 1200 Amperes |
| Maximum Collector Dissipation | 1540 Watts |
| Junction Temperature | -40 to 150 °C |
| Weight | 1200 Grams |
| Isolation Voltage | 2500 Volts |
| Gate-Emitter Threshold Voltage | 5.0 to 7.0 Volts |
The mounting torque for the M8 Main Terminal is 95 in-lb.
The typical collector-emitter saturation voltage is 2.55 Volts at 600A and 15V gate drive.
