New Japan Radio NJU7221 Series High Precision Voltage Regulator Datasheet

Q: What is the typical operating current of the NJU7221 series?

The typical operating current is 19uA.

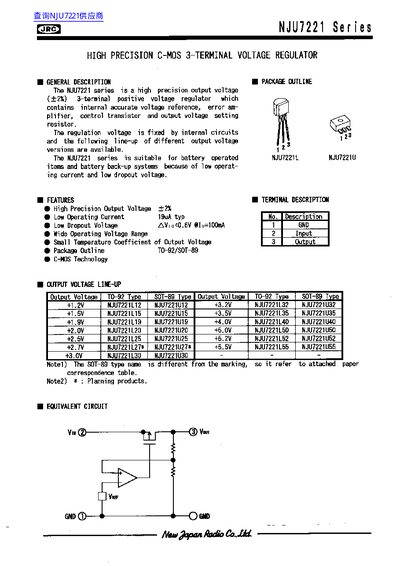

New Japan Radio NJU7221 Series High Precision Voltage Regulator Datasheet - cover page

Brand: JRC
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 170 KB
Published: 07 June, 2012
Updated: 07 June, 2012
MD5 checksum: 82EBE44791B062B0607EA1E0DAA9AE84
PDF: New Japan Radio NJU7221 Series High Precision Voltage Regulator Datasheet PDF

About this manual

This document is a technical datasheet for the NJU7221 Series of high precision output voltage (+2%) 3-terminal positive voltage regulators manufactured by New Japan Radio Co., Ltd. The series utilizes C-MOS technology to achieve low operating current (typical 19uA) and low dropout voltage, making it suitable for battery-operated items and backup systems.

What's inside

General Description
Features
Output Voltage Line-up
Absolute Maximum Ratings
Electrical Characteristics
Measurement Circuit

Specifications

Technology	C-MOS Technology
Operating Current (Typ)	19uA
Dropout Voltage (@10mA)	<0.6V
Operating Temperature Range	-2 ~ +75 °C
Output Voltage Tolerance	+2%

Frequently asked questions

What is the typical operating current of the NJU7221 series?
