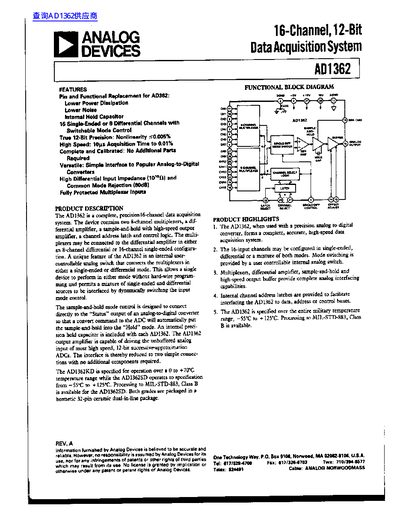

Analog Devices AD1362 16-Channel Data Acquisition System Datasheet

Brand: Analog Devices
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 8
File format: PDF
File size: 434 KB
Published: 07 June, 2012
Updated: 07 June, 2012
Model: AD1362
MD5 checksum: 161160434DC25BFA7DE4A145E1FE04B8
PDF: Analog Devices AD1362 16-Channel Data Acquisition System Datasheet PDF

About this manual

The AD1362 is a complete, precision 16-channel data acquisition system designed to interface directly with popular analog-to-digital converters. It contains two 8-channel multiplexers, a differential amplifier, a sample-and-hold circuit, and channel address latches. A unique feature is an internal user-controllable analog switch that allows the device to operate in either single-ended or differential mode without external hard-wiring.

What's inside

Features
Product Description
Specifications
Absolute Maximum Ratings
Functional Block Diagram
Functional Description
Theory of Operation

Specifications

Resolution	12-Bit Precision
Acquisition Time	10µs to 0.01%
Input Impedance (On Channel)	>10 GΩ
Common Mode Rejection	80dB

Frequently asked questions

What is the operating temperature range for the AD1362KD?

The AD1362KD is specified for operation over a 0 to +70°C temperature range.

What is the operating temperature range for the AD1362SD?

The AD1362SD operates from -55°C to +125°C.

Does the AD1362 require additional parts for interfacing?

No, it is a complete system requiring no additional parts.
