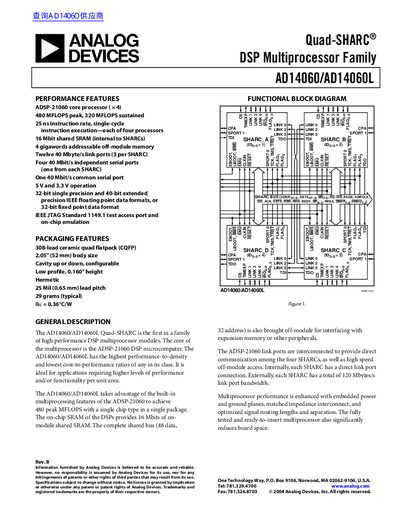

The document describes the features and performance characteristics of the AD14060/AD14060L Quad-SHARC DSP multiprocessor family, including 480 MFLOPS peak performance, 16 Mbit shared SRAM, twelve 40 Mbyte/s link ports, and four 40 Mbit/s serial ports.
The AD14060/AD14060L is a high-performance DSP multiprocessor module based on the ADSP-21060 core processor. It integrates four SHARC processors into a single 308-lead ceramic quad flatpack, delivering up to 480 MFLOPS of peak performance.
| Peak Performance | 480 MFLOPS |
|---|---|
| Instruction Rate | 25 ns |
| On-Chip SRAM | 16 Mbit |
| Link Ports | Twelve 40 Mbyte/s |
| Serial Ports | Four 40 Mbit/s independent |
| Operating Voltage | 5 V and 3.3 V |
| Package Type | 308-lead ceramic quad flatpack (CQFP) |
| Body Size | 52 mm |
The module delivers a peak performance of 480 MFLOPS.
The module contains four ADSP-21060 core processors.
Each processor achieves a single-cycle instruction execution with a 25 ns instruction rate.
Yes, it supports 32-bit single precision and 40-bit extended precision IEEE floating point data formats.
