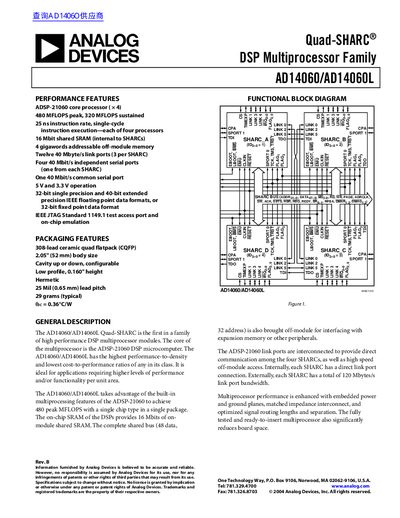

Quad-SHARC® DSP Multiprocessor Family AD14060/AD14060L Rev. B is a quad-core DSP product from Analog Devices, which uses ADSP-21060 core processor and supports 5 V and 3.3 V operating voltages.
The AD14060/AD14060L is a high-performance DSP multiprocessor module based on the ADSP-21060 core processor. It integrates four SHARC processors within a single 308-lead ceramic quad flatpack (CQFP) package, offering a peak performance of 480 MFLOPS.
The device features 16 Mbit of shared SRAM internal to the SHARCs and supports up to 4 gigawords of off-module memory. It includes twelve 40 Mbyte/s link ports for inter-processor communication and external access, along with four independent serial ports and one common serial port. The module operates at 5 V and 3.3 V and is designed for applications requiring high performance density.
| Core Processor | ADSP-21060 core processor (x 4) |
|---|---|
| Peak Performance | 480 MFLOPS |
| Instruction Rate | 25 ns |
| Shared SRAM | 16 Mbit |
| Off-module Memory Addressable | 4 gigawords |
| Link Ports | Twelve 40 Mbyte/s link ports |
| Serial Ports | Four 40 Mbit/s independent serial ports |
| Operating Voltage | 5 V and 3.3 V |
| Package Type | 308-lead ceramic quad flatpack (CQFP) |
| Body Size | 2.05" (52 mm) |
The device achieves a peak performance of 480 MFLOPS with four processors.
The AD14060/AD14060L includes 16 Mbit of shared SRAM internal to the SHARCs.
The processors support a 25 ns instruction rate with single-cycle instruction execution.
