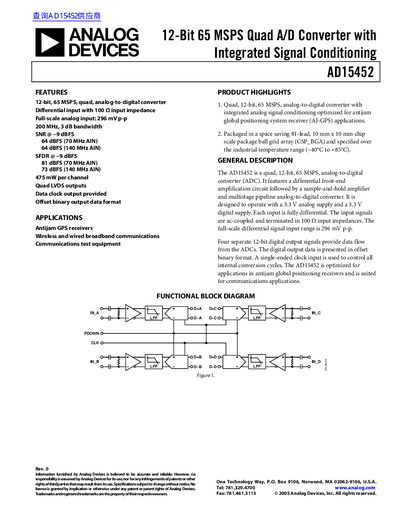

The AD15452 is a 12-bit 65 MSPS quad A/D converter with integrated signal conditioning optimized for antijam global positioning system receiver (AJ-GPS) applications.
The AD15452 is a quad, 12-bit, 65 MSPS analog-to-digital converter (ADC) featuring integrated signal conditioning. It utilizes a differential front-end amplification circuit followed by a sample-and-hold amplifier and multistage pipeline ADC architecture.
Designed for antijam global positioning system receiver applications, the device operates with 3.3 V analog and digital supplies. Each input is fully differential with an ac-coupled termination of 100 Ω input impedance.
| Resolution | 12 Bits |
|---|---|
| Conversion Rate (Max) | 65 MSPS |
| Input Range | 296 mV p-p |
| Bandwidth (3 dB) | 200 MHz |
| Supply Voltage | 3.3 V |
| Package Type | 81-lead CSP_BGA |
The device is optimized for antijam global positioning system receiver (AJ-GPS) applications and wireless communications.
Each input is terminated in 100 Ω input impedances.
