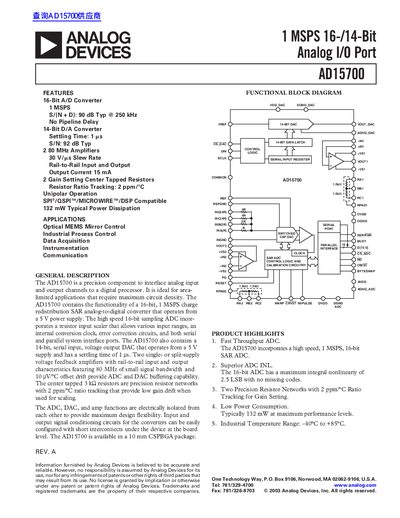

This document describes the features and characteristics of the AD15700 product, including a 16-bit A/D converter, 1 MSPS speed, 14-bit D/A converter, 80 MHz amplifiers, 30V/μs slew rate, and compatibility with SPI/QSPI/MICROWIRE/DSP.
The AD15700 is a precision component designed to interface analog input and output channels to a digital processor. It integrates a high-speed 16-bit SAR Analog-to-Digital Converter (ADC) operating at 1 MSPS from a 5 V supply, alongside a 14-bit Digital-to-Analog Converter (DAC). The device also includes two single- or split-supply voltage feedback amplifiers with rail-to-rail input and output characteristics.
| Resolution (ADC) | 16 Bits |
|---|---|
| Throughput Rate (Warp Mode) | 1 MSPS |
| Signal-to-Noise Ratio | 90 dB Typ @ 250 kHz |
| Operating Temperature Range | -40°C to +85°C |
The typical power dissipation is 132 mW at maximum performance levels.
It is suitable for optical MEMS mirror control, industrial process control, data acquisition, instrumentation, and communication.
