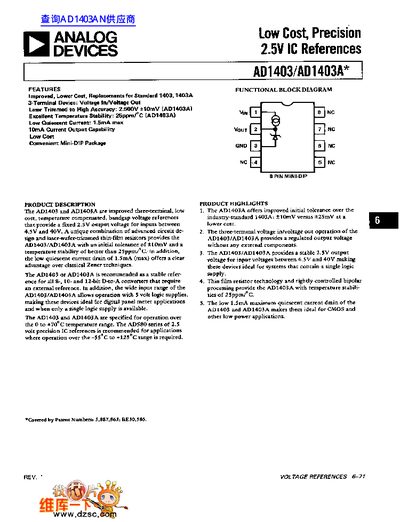

The AD1403 and AD1403A are improved three-terminal, low cost, temperature compensated, bandgap voltage references that provide a fixed 2.5 V output voltage for inputs between 4.5 V and 40 V. A unique combination of advanced circuit design and laser-wafer-trimmed thin-film resistors provides the AD1403/ AD1403A with an initial tolerance of ±10 mV and a temperature stability of better than 25 ppm/°C. In addition, the low quiescent current drain of 1.5 mA (max) offers a clear advantage over classical Zener techniques. The AD1403 or AD1403A is recommended as a stable reference for all 8-, 10- and 12-bit D-to-A converters that require an external reference. In addition, the wide input range of the AD1403/AD1403A allows operation with 5 volt logic supplies, making these devices ideal for digital panel meter applications and when only a single logic supply is available. The AD1403 and AD1403A are specified for operation o...
The Analog Devices AD1403 and AD1403A are three-terminal bandgap voltage references providing a fixed 2.5V output for input voltages between 4.5V and 40V. These devices feature laser trimming to achieve high accuracy, with the AD1403A offering an initial tolerance of ±10mV and a temperature stability better than 25ppm/°C.
| Output Voltage (Typ) | 2.5V |
|---|---|
| Input Voltage Range | 4.5V to 40V |
| Quiescent Current (Max) | 1.5mA |
| Load Current Capability | 10mA |
| Temperature Stability (AD1403A) | 25ppm/°C |
| Operating Temperature Range | 0 to +70°C |
The AD1403A offers an improved initial tolerance over the industry-standard 1403A, with a tolerance of ±10mV.
Yes, they allow operation with 5 volt logic supplies and are ideal for digital panel meter applications when only a single logic supply is available.
The devices are available in a convenient Mini-DIP package.
