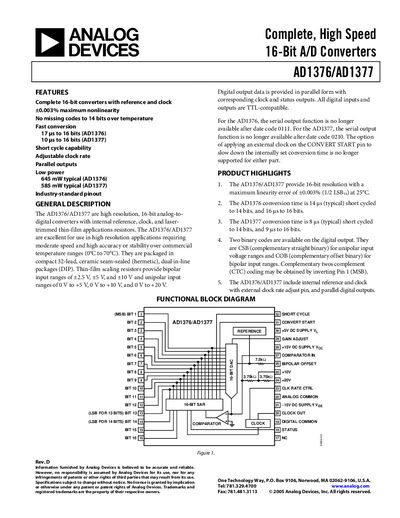

The AD1376/AD1377 are high-resolution, 16-bit analog-to-digital converters featuring internal references and clocks. They offer excellent accuracy for high-resolution applications requiring moderate speed and stability over commercial temperature ranges (0°C to 70°C). The devices are packaged in compact 32-lead ceramic seam-sealed dual-in-line packages (DIP) with thin-film scaling resistors supporting various bipolar and unipolar input ranges.
| Resolution | 16 Bits |
|---|---|
| Maximum Linearity Error | +0.003% of FSR |
| Conversion Time (AD1376, 16-bit) | 15.5 us to 17 us |
| Operating Temperature Range | -25°C to +85°C |
| Power Consumption (Typical) | 645 mW (AD1376), 585 mW (AD1377) |
| Package Type | 32-lead ceramic seam-sealed DIP |
The converters support bipolar ranges of +2.5 V, ±5 V, and ±10 V, as well as unipolar ranges of 0 V to +5 V, 0 V to +10 V, and 0 V to +20 V.
Yes, all digital inputs and outputs are TTL-compatible.
The maximum gain error is +0.2% of FSR.
