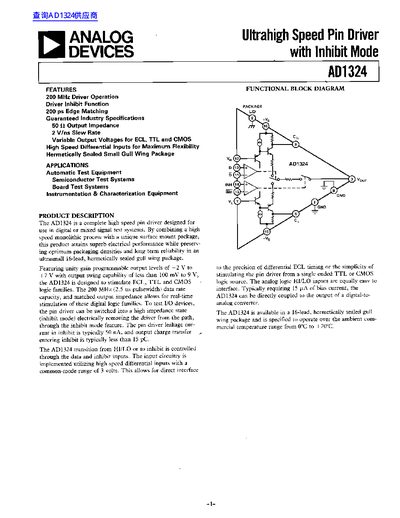

The AD1324 is a complete high-speed pin driver designed for use in digital or mixed-signal test systems. It features unity gain programmable output levels ranging from -2 V to +7 V, capable of stimulating ECL, TTL, and CMOS logic families with a 200 MHz data rate capacity.
The device includes an inhibit mode that electrically removes the driver from the path, reducing leakage current to typically 50 nA. It is available in a hermetically sealed 16-lead gull wing package and operates over a commercial temperature range of 0°C to +70°C.
| Driver Operation Frequency | 200 MHz |
|---|---|
| Output Impedance | 50 Ohms |
| Slew Rate | 2 V/ns |
| Output Voltage Range | -2 V to +7 V |
| Operating Temperature Range | 0°C to +70°C |
| Package Type | 16-lead hermetically sealed gull wing |
The device is designed to stimulate ECL, TTL, and CMOS logic families.
The pin driver leakage current in inhibit mode is typically 50 nA.
The positive supply range is +8.0 V to +11.0 V, and the negative supply range is -7.2 V to -4.2 V.
