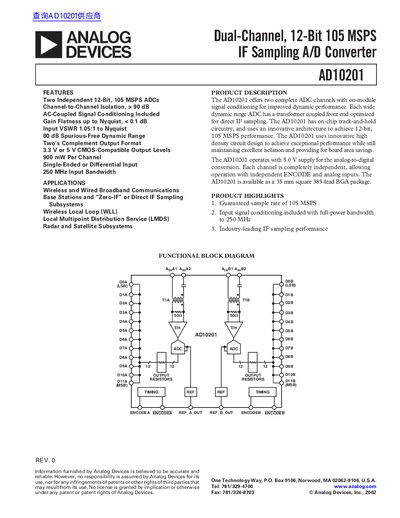

This is a datasheet for AD10201, a 12-bit ADC
The AD10201 is an integrated circuit featuring two independent 12-bit ADC channels with a guaranteed sample rate of 105 MSPS. It includes on-module signal conditioning optimized for direct IF sampling, offering input signal bandwidth up to 250 MHz and channel-to-channel isolation greater than 90 dB.
The device operates with a 5.0 V supply voltage and is available in a 385-lead BGA package measuring 35 mm square. It supports both single-ended and differential inputs, providing two's complement output format compatible with 3.3 V or 5 V CMOS logic levels.
| Resolution | 12 Bits |
|---|---|
| Sample Rate (Maximum) | 105 MSPS |
| Input Bandwidth | 250 MHz |
| Channel-to-Channel Isolation | > 90 dBc |
| Supply Voltage (Analog) | 5.0 V |
| Package Type | 385-Lead BGA |
The guaranteed sample rate for the device is 105 MSPS.
Yes, it includes on-module signal conditioning optimized for direct IF sampling with full-power bandwidth to 250 MHz.
The device uses a Two's Complement Output Format.
