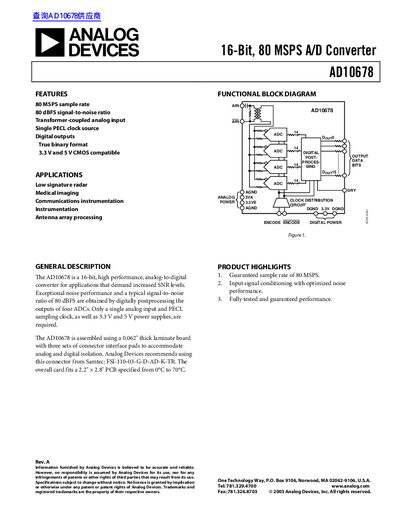

The AD10678 is a 16-bit, 80 MSPS analog-to-digital converter for applications that demand increased SNR levels. Exceptional noise performance and a typical signal-to-noise ratio of 80 dBFS are obtained by digitally programmed gain control, and multiple digital output formats are provided.
The AD10678 is a 16-bit, high performance analog-to-digital converter designed for applications requiring increased signal-to-noise ratio (SNR) levels. It achieves an exceptional typical SNR of 80 dBFS through digitally postprocessing the outputs of four internal ADCs. The device requires only a single analog input and PECL sampling clock, along with 3.3 V and 5 V power supplies.
| Resolution | 16 Bits |
|---|---|
| Signal-to-Noise Ratio (Typical) | 80 dBFS |
| Operating Temperature Range | 0°C to 70°C |
| Supply Voltage (Analog) | 5 V |
| Supply Voltage (Digital/Encode) | 3.3 V |
The guaranteed maximum conversion rate is 80 MSPS.
Yes, its digital outputs are CMOS compatible at both 3.3 V and 5 V.
The device provides a typical signal-to-noise ratio of 80 dBFS.
