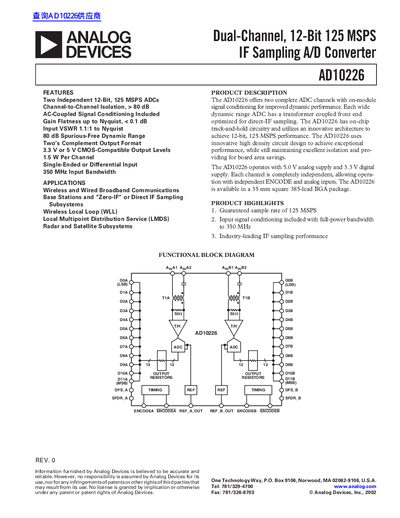

AD10226 is a dual-channel, 12-bit, 125 MSPS IF sampling A/D converter from Analog Devices.
The AD10226 is an Analog Devices component featuring two independent 12-bit ADC channels operating at up to 125 MSPS. It includes on-module AC-coupled signal conditioning and track-and-hold circuitry optimized for direct-IF sampling applications in wireless communications, radar, and satellite subsystems.
The device operates with a 5.0 V analog supply and a 3.3 V digital supply. It is housed in a 385-lead BGA package measuring 35 mm square. Key specifications include an input bandwidth of up to 350 MHz, channel-to-channel isolation greater than 80 dB, and spurious-free dynamic range exceeding 76 dBFS.
| Resolution | 12 Bits |
|---|---|
| Input Bandwidth (High) | 350 MHz |
| Channel-to-Channel Isolation | > 80 dB |
| Package Type | 385-Lead BGA (35 mm x 35 mm) |
| Analog Supply Voltage | 5.0 V |
The guaranteed sample rate is 125 MSPS.
It operates with a 5.0 V analog supply and a 3.3 V digital supply.
