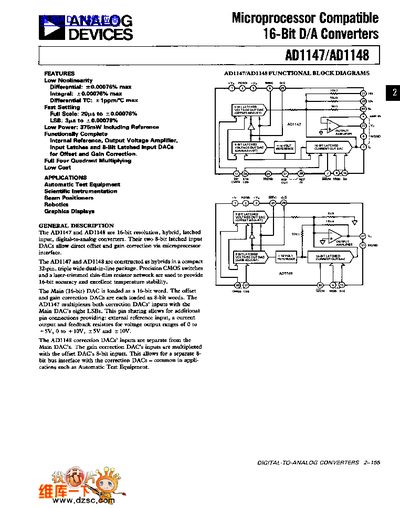

The AD1147 and AD1148 are 16-bit resolution, hybrid, latched input, digital-to-analog converters designed for microprocessor compatibility. They feature two 8-bit latched input DACs that allow direct offset and gain correction via a microprocessor interface. The devices utilize precision CMOS switches and laser-trimmed thin-film resistor networks to provide high accuracy and temperature stability.
| Resolution | 16 Bits |
|---|---|
| Differential Nonlinearity (Max) | +0.00076% FSR |
| Integral Nonlinearity (Max) | +0.00076% FSR |
| Settling Time to 0.00076% | 20ps |
| Supply Current Drain (Max) | +15mA |
| Total Power (Typical) | 375mW |
| Temperature Range (Rated Performance) | -25°C to +85°C |
The devices are suitable for Automatic Test Equipment, Scientific Instrumentation, Beam Positioners, Robotics, and Graphics Displays.
The offset correction DAC is selected by setting a high level on the O/G pin.
The maximum differential nonlinearity is +0.00076% FSR.
