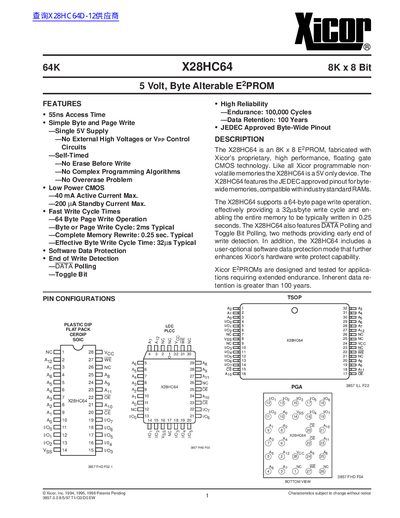

This datasheet is the specification parameters of Xicor's X28HC64 8K x 8 Bit 5 Volt, Byte Alterable E2PROM product.
The Xicor X28HC64 is an 8K x 8 bit E2PROM fabricated with high performance floating gate CMOS technology. It operates on a single 5 volt supply without the need for external high voltage or Vpp control circuits.
Key features include a 55ns access time, fast write cycle times with support for 64-byte page writes, and low power consumption with a maximum active current of 40 mA. The device offers two methods for end-of-write detection: DATA Polling and Toggle Bit.
| Memory Capacity | 8K x 8 Bit |
|---|---|
| Technology | E2PROM |
| Supply Voltage | 5 Volt |
| Access Time | 55ns |
| Active Current Max. | 40 mA |
| Standby Current Max. | 200 uA |
| Endurance | 100,000 Cycles |
| Data Retention | 100 Years |
No, it operates with a single 5V supply and requires no external high voltages or Vpp control circuits.
The maximum active current is 40 mA.
