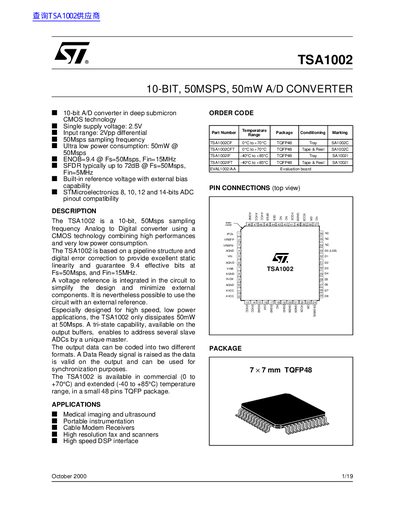

The TSA1002 is a 10-bit A/D converter manufactured using CMOS technology, combining high performance and low power consumption. It provides 9.4 effective bits at a sampling frequency of 50Msps and has a maximum SFDR of 72dB. The converter has a built-in reference voltage and can be externally biased. It is designed for high-speed, low-power applications and consumes only 50mW at 50Msps.
The document describes the TSA1002, a 10-bit Analog to Digital Converter (ADC) utilizing deep submicron CMOS technology. It features a sampling frequency of up to 50 Msps and consumes only 50mW at full speed. The device incorporates an internal voltage reference to simplify design and includes digital error correction for high linearity.
| Resolution | 10-bit |
|---|---|
| Sampling Frequency | 50 Msps |
| Power Consumption | 50 mW @ 50Msps |
| Effective Resolution Bandwidth | 60 MHz |
| Analog Input Bandwidth | 100 MHz |
The device is available in commercial range (0°C to +70°C) and extended range (-40°C to +85°C).
The device supports a sampling frequency up to 50 Msps.
The device dissipates typically 48 mW during normal operation.
The converter provides an ENOB of 9.4 bits when sampled at 50 Msps.
