The SPX1084 is a low power 5A adjustable and fixed voltage regulator with low dropout voltage and fast transient response. It is suitable for powering VGA and sound cards, high-efficiency linear power supplies, and portable instrumentation.

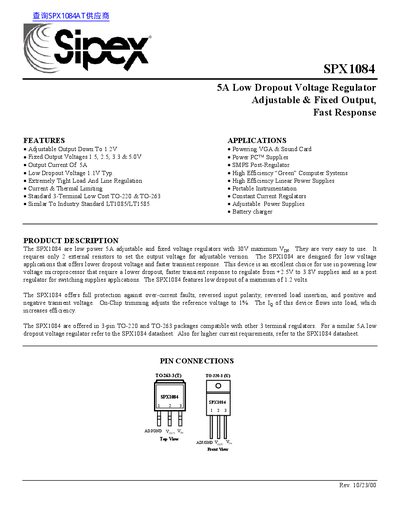

The Sipex SPX1084 is a low power 5A adjustable and fixed voltage regulator featuring a maximum dropout voltage of 3.0V (typical 1.2V). It offers full protection against over-current faults, reversed input polarity, and transient voltages. The device includes on-chip trimming for a reference voltage accuracy of 1%.
| Output Current | 5A |
|---|---|
| Dropout Voltage (Typ) | 1.2V |
| Max Input Voltage | 30V |
| Reference Voltage (Adj) | 1.25V |
The device offers fixed output voltages of 1.5V, 2.5V, 3.3V, and 5.0V.
The regulator is offered in 3-pin TO-220 and TO-263 packages.
A 220uF aluminum electrolytic or a 47uF solid tantalum capacitor is required between the output terminal and ground.
