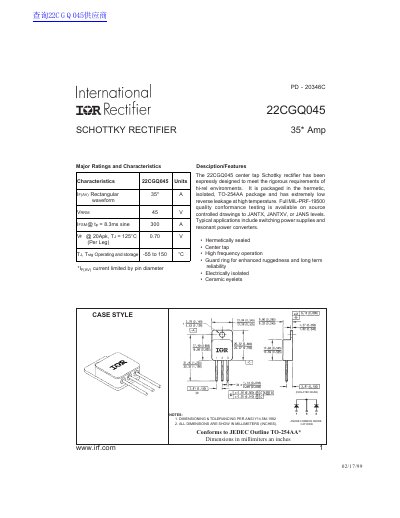

The 22CGQ045 is a center tap Schottky rectifier from IRF with a rated current of 35A and a rated voltage of 45V. It is packaged in the TO-254AA package and has extremely low reverse leakage at high temperature. Typical applications include switching power supplies and resonant power converters.
The 22CGQ045 center tap Schottky rectifier is designed for high-reliability environments, specifically switching power supplies and resonant power converters. It is packaged in a hermetic, electrically isolated TO-254AA package with ceramic eyelets for enhanced ruggedness and long-term reliability. The device meets full MIL-PRF-19500 quality conformance testing standards.
| Max. Average Forward Current | 35 A |
|---|---|
| Max. Reverse Voltage | 45 V |
| Max. Peak One Cycle Non-Repetitive Surge Current | 300 A |
| Forward Voltage Drop @ 20A | 0.70 V (Per Leg) |
| Operating and Storage Temperature Range | -55 to 150 °C |
Typical applications include switching power supplies and resonant power converters.
Yes, it meets full MIL-PRF-19500 quality conformance testing to JANTX, JANTXV, or JANS levels.
