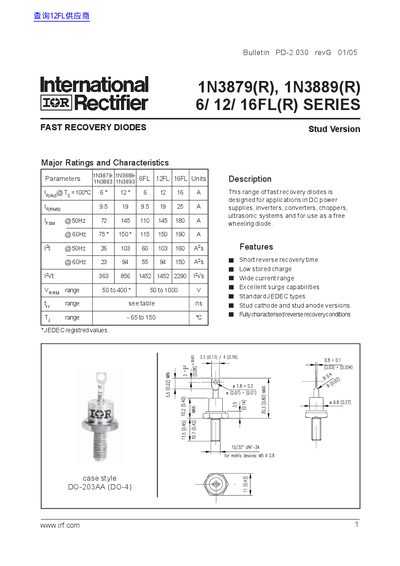

International Rectifier 1N3879(R) 1N3889(R) 6FL(R) 12FL(R) 16FL(R) SERIES handbook

1N3879(R), 1N3889(R) 6/ 12/ 16FL(R) Series is a fast recovery diode from IRF company. It is mainly used in DC power supplies, inverters, converters, choppers, ultrasonic systems and as a free wheeling diode

Brand: International Rectifier
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 10
File format: PDF
File size: 2.5 MB
Published: 15 June, 2012
Updated: 30 September, 2023
Models: 1N3879, 1N3889
MD5 checksum: C8B2F4DBCCB029E15CDBCA24E61F66E9
PDF: International Rectifier 1N3879(R) 1N3889(R) 6FL(R) 12FL(R) 16FL(R) SERIES handbook PDF

About this manual

This document provides detailed specifications and characteristics for the International Rectifier IRF Fast Recovery Diodes series. The diodes are designed for applications in DC power supplies, inverters, converters, choppers, ultrasonic systems, and as free-wheeling diodes. They feature short reverse recovery time, low stored charge, wide current range, and excellent surge capabilities.

What's inside

Features
Major Ratings and Characteristics
Electrical Specifications
Recovery Characteristics
Thermal and Mechanical Specification
Outline Table
Ordering Information

Specifications

Case Style	DO-203AA (DO-4)
Mounting Torque (Unlubricated)	1.5 Nm (+0-10%)
Mounting Torque (Lubricated)	1.2 Nm (+0-10%)

Frequently asked questions

What are the main applications for these diodes?

These diodes are designed for applications in DC power supplies, inverters, converters, choppers, ultrasonic systems, and as free-wheeling diodes.

What is the case style for this series?

The case style conforms to JEDEC DO-203AA (DO-4).
