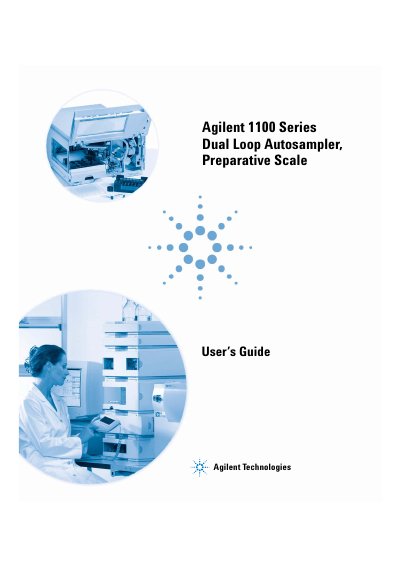

This manual introduces the use of the Agilent 1100 Series Dual Loop Autosampler, including the composition, principle, use, and maintenance methods of the autosampler
The Agilent 1100 Series Dual Loop Autosampler is designed for rapid injection of high sample volumes in preparative HPLC separations or sample trapping methods. It features a dual loop concept with two pre-installed sample loops, allowing convenient switching between preparative and analytical scales without hardware modifications. The system supports various sample tray configurations, including well plates and vial plates.
| Injection range | 0.1 – 5000 µl in 0.1 µl increments |
|---|---|
| Recommended injection range | 10 - 5000 µl |
| Draw/eject speed max. | 50 ml/min |
| Loop size max. | 5 ml |
| Sample capacity | 2 × well-plates (MTP) + additional 10 × 2 ml vials |
| Temperature range of sample compartment | 4 - 40 deg C |
The maximum draw/eject speed is 50 ml/min, which is selectable in 1 µl/min steps.
The recommended injection range is between 10 µl and 5000 µl.
It supports any combination of two plates: a 96 well plate, a 54 x 2 ml vial plate, or a 15 x 6 ml vial plate.
