Agilent Wide-Bore Heat Exchanger Installation Kit (01090-68707)

This document describes how to install the wide-bore heat exchanger using the parts supplied in this kit. You can install the wide-bore heat exchanger in the flow path, between the column and flow cell, in either the Filter-Photometric Detector (FPD) or Diode Array Detector (DAD) in your 1090 High Performance Liquid Chromatograph.

Brand: Agilent
Document type: Installation Guide
Language: English
Pages: 8
File format: PDF
File size: 284 KB
Published: 07 June, 2012
Updated: 28 September, 2023
MD5 checksum: 3C1D52411D7023A7EDDD4C43E2508233
PDF: Agilent Wide-Bore Heat Exchanger Installation Kit (01090-68707) PDF

About this manual

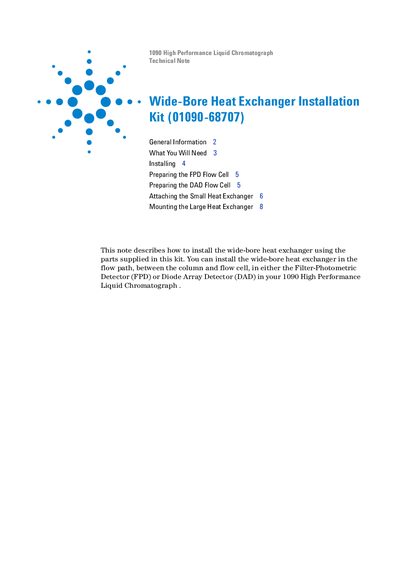

This document describes the installation of a Wide-Bore Heat Exchanger Installation Kit (part number 01090-68707) for use with the Agilent 1090 High Performance Liquid Chromatograph. The kit allows users to install the heat exchanger in the flow path between the column and either the Filter-Photometric Detector (FPD) or Diode Array Detector (DAD).

What's inside

General Information
What You Will Need
Installing
Preparing the FPD Flow Cell
Preparing the DAD Flow Cell
Attaching the Small Heat Exchanger
Mounting the Large Heat Exchanger

Specifications

Part Number	01090-68707
Capillary Internal Diameter	0.17 mm

Frequently asked questions

Which flow cells are compatible with this kit?

This kit can be installed in the Filter-Photometric Detector (FPD) or Diode Array Detector (DAD).

What is the internal diameter of the capillary included in this kit?

The internal diameter of the extra flow cell inlet capillary required for connecting to an FPD flow cell is 0.17 mm.

Which screw length should be used when installing the heat exchanger on a DAD flow cell?

You must use the short 2.5x6 mm screw for the DAD flow cell to avoid damaging the assembly.
