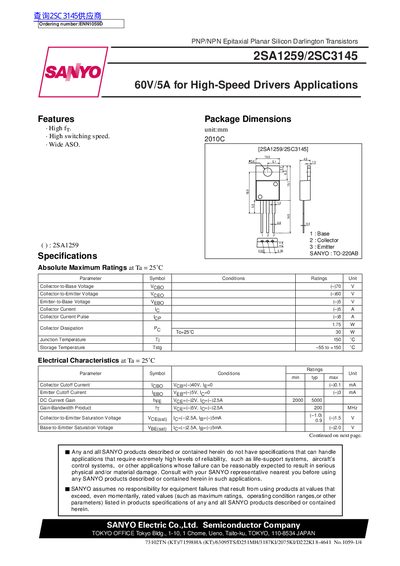

SANYO 2SA1259/2SC3145 Darlington Transistor Datasheet

This is a SANYO 2SA1259/2SC3145 datasheet, which includes the product parameters and characteristics.

Brand: Sanyo
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 36 KB
Published: 07 June, 2012
Updated: 30 September, 2023
MD5 checksum: BEEC99430AB3871132091221A7CC9E3D
PDF: SANYO 2SA1259/2SC3145 Darlington Transistor Datasheet PDF

About this manual

This document is a technical datasheet for the SANYO 2SA1259 (PNP) and 2SC3145 (NPN) Epitaxial Planar Silicon Darlington Transistors. These devices are specifically designed for high-speed driver applications, offering a collector current rating of up to 5A with pulse capabilities reaching 8A.

What's inside

Features
Package Dimensions
Absolute Maximum Ratings
Electrical Characteristics
Specified Test Circuit
Collector Dissipation

Specifications

Collector Current (Continuous)	5 A
Collector Current Pulse	8 A
Collector-to-Emitter Voltage	-60 V
Collector-to-Base Voltage	-70 V
Junction Temperature	150 °C

Frequently asked questions

What is the intended application for these transistors?

They are designed for high-speed driver applications.

Are there specific restrictions on using these products in critical systems?

Yes, they should not be used in life-support or aircraft control systems without consulting a representative.

Download PDF (36 KB)
