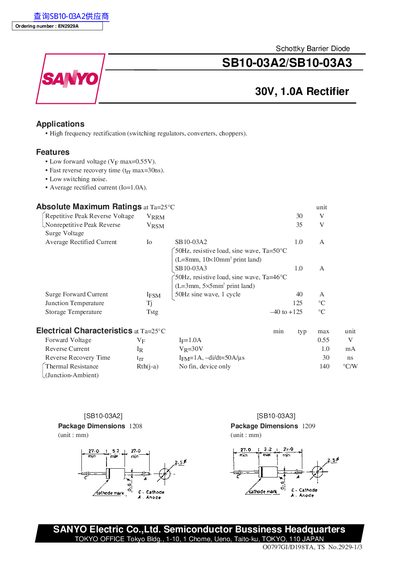

This document describes the features and characteristics of the SB10-03A2/SB10-03A3 Rectifier Schottky Barrier Diode from SANYO Electric Co., Ltd., including low forward voltage, fast reverse recovery time, low switching noise, and average rectified current.
This document is a technical datasheet for the Sanyo SB10-03A2 and SB10-03A3 Schottky Barrier Diodes. It specifies that these are 30V, 1.0A rectifiers designed for high-frequency applications such as switching regulators and converters. Key features include a low forward voltage of 0.55V maximum and a fast reverse recovery time of 30ns maximum.
| Peak Reverse Voltage | 30 V |
|---|---|
| Nonrepetitive Peak Reverse Voltage | 35 V |
| Average Rectified Current (SB10-03A2) | 1.0 A |
| Average Rectified Current (SB10-03A3) | 1.0 A |
| Surge Forward Current | 40 A |
| Junction Temperature | 125 °C |
| Storage Temperature | -40 to +125 °C |
| Forward Voltage (Typical) | 0.55 V |
| Reverse Current | 1.0 mA |
| Reverse Recovery Time | 30 ns |
They are intended for high frequency rectification in switching regulators, converters, and choppers.
The maximum forward voltage is 0.55V at a test current of 1.0A.
The maximum junction temperature rating is 125 °C.
