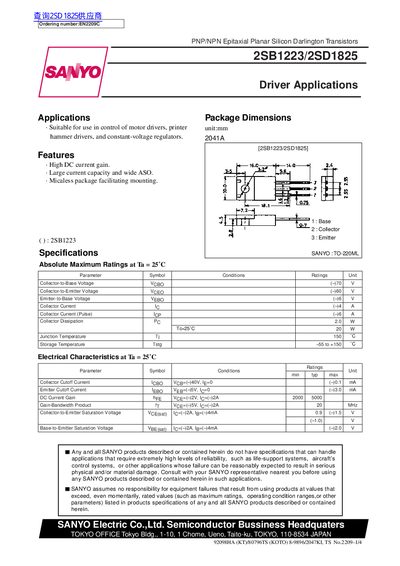

SANYO 2SB1223/2SD1825 PNP/NPN Darlington Transistors Datasheet

This document is the datasheet of SANYO 2SB1223/2SD1825. It introduces the application scenarios, features and characteristics of this product.

Brand: Sanyo
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 139 KB
Published: 07 June, 2012
Updated: 30 September, 2023
MD5 checksum: 3197BE1B820C163DFBA96082155C56B1
PDF: SANYO 2SB1223/2SD1825 PNP/NPN Darlington Transistors Datasheet PDF

About this manual

This document provides technical specifications for the SANYO 2SB1223 (PNP) and 2SD1825 (NPN) Epitaxial Planar Silicon Darlington Transistors. These devices are designed for driver applications, including motor drivers, printer hammer drivers, and constant-voltage regulators.

What's inside

Applications
Features
Absolute Maximum Ratings
Electrical Characteristics
Switching Time Test Circuit
Package Dimensions

Specifications

Collector-to-Base Voltage (VcBO)	70 V
Collector-to-Emitter Voltage (VCEO)	60 V
Emitter-to-Base Voltage (VEBO)	6 V
Collector Current (Io)	4 A

Frequently asked questions

What are the suitable applications for these transistors?

They are suitable for use in control of motor drivers, printer unit hammer drivers, and constant-voltage regulators.

What is the maximum junction temperature?

The maximum junction temperature (Tj) is 150 C.
