LC74FCT16245T and LC74FCT162245T 16-bit transceivers are fabricated in an advanced two-metal-layer CMOS technology. These fast, low-power transceivers are optimal for synchronous communication between two buses, referred to as the A and B busses. The directionality and output enable control in these products is designed to allow them to be used as either two independent 8-bit transceivers or as a single 16-bit transceiver. The direction control pin (× DIR) controls the data flow direction and the output enable pin (× OE) disables directionality control and disables both ports. The LC74FCT16245T is optimal for driving large-capacitance loads and low-impedance loads. The LC74FCT162245T provides a balanced output drive function that incorporates current limiting resistors. These minimize ground bounce and undershoot, and limit the output fall time. As a result, external series terminating resistors are no longer required. The LC74FCT162245T is a plug-in replacement for the LC74FCT16245T in on-board interface applications.

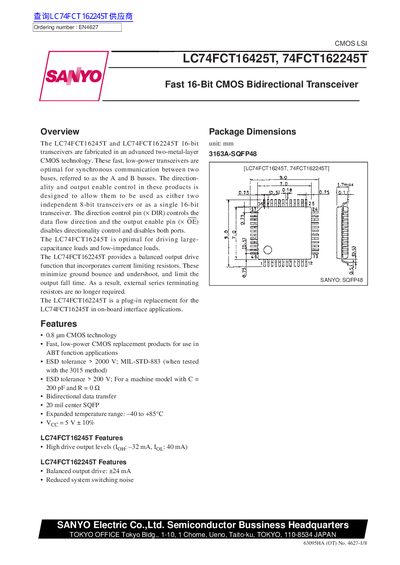

This document provides technical specifications for the Sanyo LC74FCT16425T and 74FCT162245T, which are 16-bit CMOS bidirectional transceivers designed for synchronous communication between two buses. These devices utilize advanced two-metal-layer CMOS technology to offer fast, low-power performance suitable for various interface applications.
| Technology | 0.8 um CMOS technology |
|---|---|
| ESD Tolerance | > 2000 V |
| Operating Temperature | -40 to +85 °C |
| Storage Temperature | -55 to +125 °C |
| Power Dissipation | #4 W |
| DC Output Current | -60 to +60 mA |
| Package Type | 20 mil center SQFP |
| Input Capacitance | 5.5 to 8.0 pF |
| Output Capacitance | 4.5 to 6.0 pF |
They are 16-bit transceivers fabricated in advanced CMOS technology for synchronous communication between two buses.
Yes, the directionality and output enable control allow them to be used as either two independent 8-bit transceivers or as a single 16-bit transceiver.
The LC74FCT16425T is optimal for driving large-capacitance loads, while the LC74FCT162245T provides a balanced output drive function with current limiting resistors.
