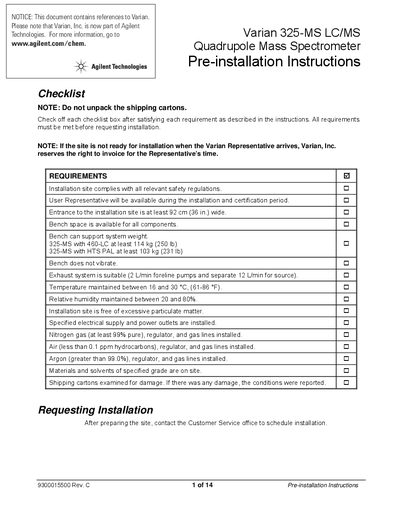

This document is the pre-installation instructions for Varian 325-MS LC/MS Quadrupole Mass Spectrometer, including installation requirements, environmental requirements, and electrical requirements
This document serves as a guide for preparing an installation site for the Agilent 325-MS LC/MS system. It outlines specific environmental conditions, such as temperature (16 to 30 °C) and humidity (20 to 80%), along with safety regulations and power supply requirements that must be met before scheduling installation.
| Operating Temperature Range | 16 to 30 °C (61-86 °F) |
|---|---|
| Operating Humidity Range | 20 to 80% |
| Minimum Entrance Width | 92 cm (36 in.) |
| Bench Depth Requirement (Wall Distance >= 10.2cm) | 84 cm (33 in.) |
| Bench Depth Requirement (Wall Distance < 10.2cm) | 94 cm (37 in.) |
| Foreline Pump Exhaust Rate | 2 L/min |
The entrance must be at least 92 cm (36 in.) wide.
The bench must be at least 94 cm (37 in.) deep to accommodate vacuum hoses.
The pumps require a circuit providing 200-240V ac, 50-60 Hz, with a recommendation of 10A per pump.
