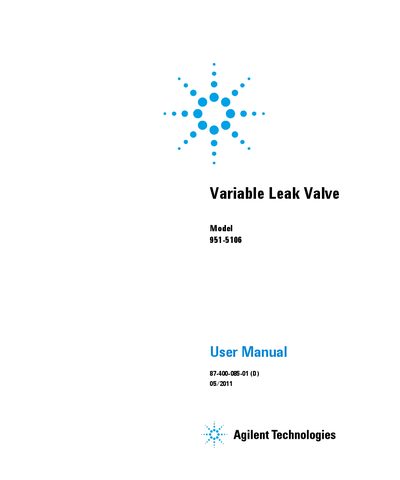

Agilent Technologies Variable Leak Valve Model 951-5106 User Manual

About this manual

The document serves as a comprehensive guide for the Agilent Technologies Variable Leak Valve Model 951-5106. It covers safety information, general descriptions, and detailed operational procedures including establishing new stop positions and setting leak rates at various levels.

Additionally, the manual addresses specific maintenance tasks such as bakeout procedures, lubrication instructions, and troubleshooting steps for issues like loss of sensitivity or valves that will not close leak-tight. It also lists replacement parts and accessories compatible with the device.

What's inside

• Safety Information
• Variable Leak Valve Description
• Flange Connection
• Inlet Gas Connection
• To Establish a New Stop Position
• Operating at Low Leak Rates
• Bakeout Procedure
• Lubrication Instructions
• Replacement Parts

Frequently asked questions

What is the initial condition of the valve when shipped?

The valve is shipped in a closed, leak-tight condition.

What is the initial condition of the Variable Leak Valve when it arrives?

The valve is shipped in a closed, leak-tight condition.

What specific failure modes should be described on the return form for valves?

For valves and components, you must describe issues such as bad feedthroughs, poor vacuum, or damaged flanges.
