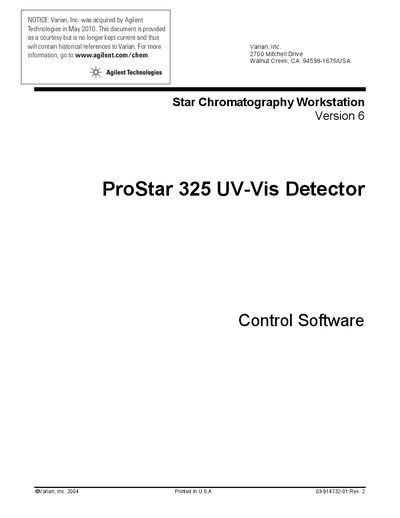

Agilent ProStar 325 UV-Vis Detector Control Software User Manual

About this manual

This document provides instructions for configuring and using the ProStar 325 UV-Vis Detector in conjunction with the Star Chromatography Workstation. It covers connecting the detector via Ethernet, setting up IP addresses and host names, and integrating the device with other instruments like fraction collectors.

The guide details how to operate the software interface, including viewing real-time chromatograms, managing lamp status and hours, adjusting output gain for different flow cells, and configuring dual wavelength or ratio modes. It also explains how to reset lamp installation dates in GLP-compliant logging.

What's inside

• Configuring the 325 Detector
• Connecting the ProStar 325 Detector
• Setting up Ethernet Communications
• ProStar 325 Detector Status Window
• Lamp Operation Options
• Output Gain Control
• Flow Cell Configuration

Specifications

Frequently asked questions

How many ProStar 325 detectors can be connected to one workstation?

Up to four ProStar 325 detectors can be attached to a single Star workstation PC.

What is the purpose of the Output Gain control?

It allows users to select an output normalized to a 10 mm flow cell path length by multiplying the signal by 1.111 for easier comparison.

How long does the lamp calibration take when first turned on?

The calibration process takes between two and four minutes.
