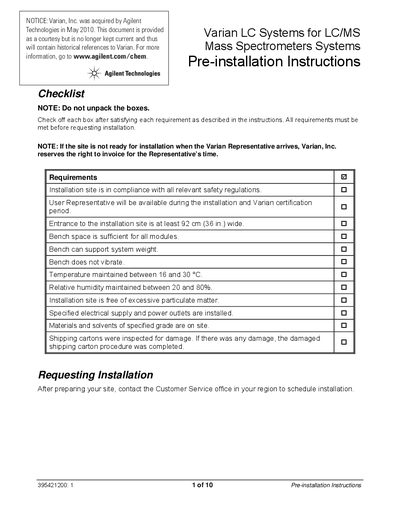

This document is a pre-installation instruction manual for Varian LC systems, which mainly introduces the pre-installation requirements
This document serves as a pre-installation guide for Varian LC Systems acquired by Agilent Technologies. It provides a comprehensive checklist of site requirements that must be met before requesting installation, including safety regulations, entrance clearance, bench space, and environmental conditions.
The instructions detail specific physical constraints such as minimum entrance width (92 cm), temperature ranges (16-30 °C), and humidity levels (20-80%). It also includes tables specifying the dimensions, weights, and power requirements for various LC module configurations like the 212-LC and 216-LC.
| Optimal Operating Temperature | 16 to 30 °C (61-86 °F) |
|---|---|
| Relative Humidity Range | 20% to 80% |
| Minimum Entrance Width | 92 cm (36 in.) |
| Minimum Bench Depth for MS | 84 cm (33 in.) |
| 212-LC Power Input | 85 — 264V ac; 47 — 63 Hz; 60 Watts 100VA |
| 216-LC Power Input (115V) | 115V ac; +15/-20%; 50/60 Hz; 250VA |
| 216-LC Power Input (230V) | 230V ac; +15/-20%; 50/60 Hz; 250VA |
The installation site must comply with safety regulations, have an entrance at least 92 cm wide, sufficient bench space and load capacity, no vibration, temperature between 16-30 °C, humidity between 20-80%, and be free of excessive particulate matter.
The 216-LC requires a separate dedicated power source. It uses one 5.0 AT-fuse for 115V ac and one 2.5 AT-fuse for 230V ac.
The 212-LC requires two 4-liter bottles of LC-MS grade water, two 1-liter bottles of LC-MS grade acetonitrile, and two 1-liter bottles of LC-MS grade methanol.
