This document includes LC module operation notes and important notes on upgrading from version 4.5 to version 6

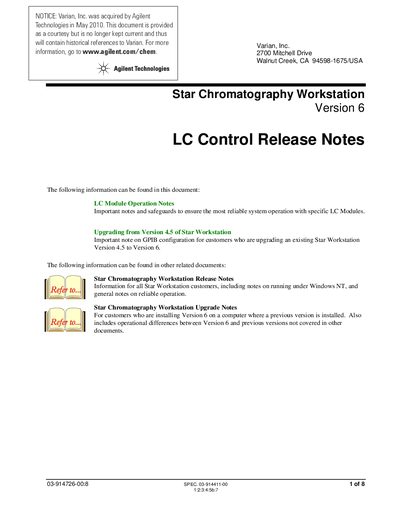

This document provides release notes for the Agilent Star Chromatography Workstation Version 6 LC Control software. It includes specific operational notes and safeguards for various LC modules such as the ProStar 701 Fraction Collector, ProStar 500 Column Valve Module (CVM), and ADC Boards.
The guide also addresses upgrading from Version 4.5 of Star Workstation, detailing important GPIB configuration steps. Additionally, it outlines system configuration limits for serial communications and troubleshooting tips for issues like running ADC boards with a GPIB board or handling communication errors.
| Sampling Rate Intervals | 0.05, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9 and 1.0 sample/second |
|---|---|
| Fraction Collector Programs | up to four Fraction Collector Programs |
Firmware version 'G' must be installed in the ProStar 701 and configured in Star WS.
Verify that each GPIB module is turned on and addresses are set to a unique address between 1 and 15.
The maximum data collection rate is 20 Hz.
