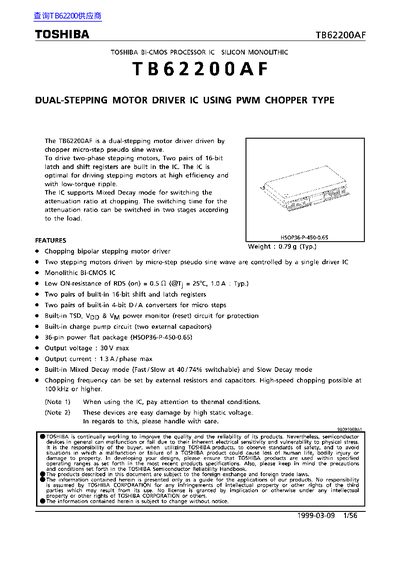

The Toshiba TB62200AF is a monolithic Bi-CMOS integrated circuit designed to drive two pairs of two-phase stepping motors. It utilizes a chopper micro-step pseudo sine wave control method to achieve high efficiency and low torque ripple. The IC features built-in 16-bit latch and shift registers for each motor pair, along with 4-bit D/A converters for precise micro-stepping control.
| Output Voltage | 30V max |
|---|---|
| Output Current | 1.3 A/phase max |
| ON-resistance (RDS(on)) | 0.50 Ohm (Typ.) |
| Package Type | HSOP36-P-450-0.65 |
| Weight | 0.79g (Typ.) |
It is designed to drive two-phase stepping motors using a chopper micro-step pseudo sine wave.
Yes, it supports Mixed Decay mode for switching the attenuation ratio at chopping between Fast/Slow or Slow modes.
