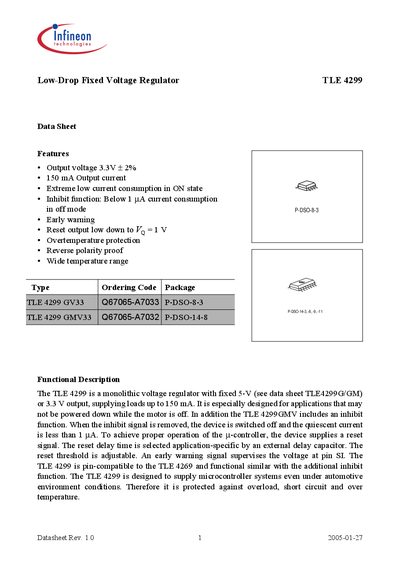

The TLE 4299 is a low-drop fixed voltage regulator with an output voltage of 3.3V ± 2%, an output current of 150 mA, extreme low current consumption in ON state, below 1µA current consumption in off mode, early warning function, reset output low down to VQ = 1 V, overtemperature protection, reverse polarity proof, and wide temperature range.
The Infineon Technologies TLE4299 is a monolithic, PNP-based very low drop linear voltage regulator designed to supply loads up to 150 mA with a fixed 3.3 V output voltage (tolerance +2%). It includes features such as an inhibit function for reduced current consumption in off mode, a power-on reset with adjustable delay and threshold, and an early warning sense control.
| Output voltage | 3.3 V + 2% |
|---|---|
| Output current | 150 mA |
The device regulates the output voltage to 3.3 V with a tolerance of +2%.
Yes, it includes an inhibit function to disable the regulator when not in use.
The device supplies loads up to 150 mA.
