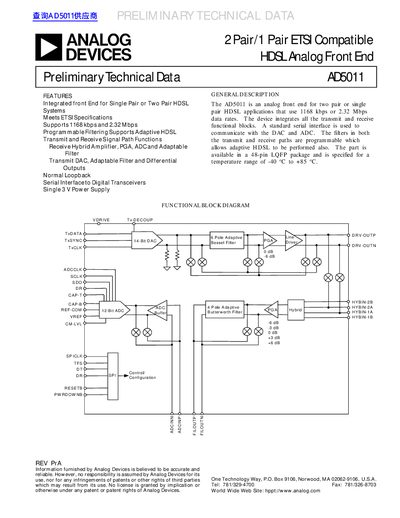

The AD5011 is an analog front end for two pair or single pair HDSL applications that use 1168 kbps or 2.32 Mbps data rates. The device integrates all the transmit and receive functional blocks.
The AD5011 is an integrated analog front end designed for single or two-pair High-Density Subscriber Line (HDSL) systems. It supports data rates of 1168 kbps and 2.32 Mbps, meeting ETSI specifications. The device integrates transmit and receive functional blocks including a programmable filter, hybrid amplifier, PGA, ADC, and DAC.
| Data Rates Supported | 1168 kbps and 2.32 Mbps |
|---|---|
| Package Type | 48-pin LQFP |
| Operating Temperature Range | -40°C to +85°C |
| Power Supply Voltage | 3.15 V to 3.45 V |
| Transmit DAC Resolution | 14 Bits |
| Receive ADC Resolution | 12 Bits |
| Signal to Noise Ratio (Typ) | 71 dB |
The device supports data rates of 1168 kbps and 2.32 Mbps.
Yes, it is designed to meet ETSI specifications for HDSL systems.
The device is specified for an operating temperature range of -40°C to +85°C.
The part is available in a 48-pin LQFP package.
