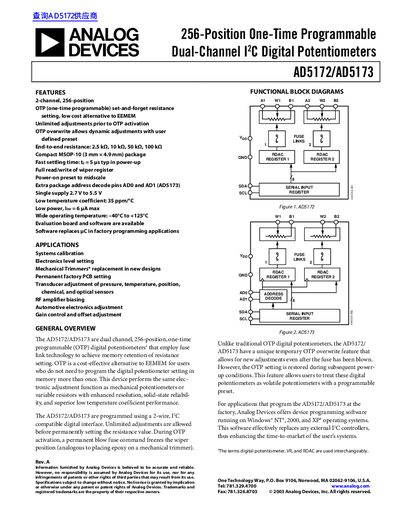

Analog Devices AD5172/AD5173 256-Position OTP Digital Potentiometers Datasheet

AD5172/AD5173 is a 256-position one-time programmable dual-channel I2C digital potentiometer with various features and characteristics.

Brand: Analog Devices
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 24
File format: PDF
File size: 740 KB
Published: 07 June, 2012
Updated: 29 September, 2023
Models: AD5173, 256-POSITION, AD5172
MD5 checksum: 119FF90C1E360EC2144E41A80915BA46
PDF: Analog Devices AD5172/AD5173 256-Position OTP Digital Potentiometers Datasheet PDF

About this manual

The AD5172/AD5173 are dual channel, 256-position, one-time programmable (OTP) digital potentiometers that employ fuse link technology for memory retention. They offer a cost-effective alternative to EEPROM-based solutions while providing enhanced resolution and solid-state reliability.

What's inside

Electrical Characteristics
One-Time Programming
Programming the Variable Resistor
ESD Protection
Power-Up Sequence
PC Interface
Pin Configuration
Ordering Guide

Specifications

Number of Channels	2-channel
Resolution	256-position
Resistance Values	2.5 kΩ, 10 kΩ, 50kΩ, 100 kΩ
Package Type	MSOP-10 (3 mm x 4.9 mm)
Supply Voltage Range	2.7 V to 5.5 V
Operating Temperature	-40°C to +125°C

Frequently asked questions

What is the main feature of the AD5172/AD5173?

They are one-time programmable (OTP) digital potentiometers that use fuse link technology to achieve memory retention of resistance setting.

Can the resistance be adjusted after OTP activation?

Yes, a unique temporary OTP overwrite feature allows for new adjustments even after the fuse has been blown, though the setting is restored during subsequent power-up.

What operating systems are supported by the programming software?

The device programming software runs on Windows NT, 2000, and XP operating systems.
