This product is a precision monolithic operational amplifier with high accuracy and fast settling time.

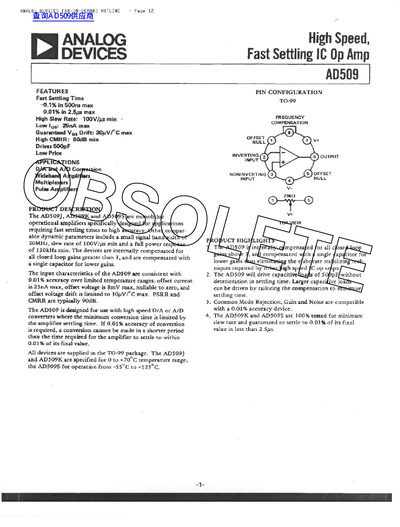

This document is a technical datasheet for the AD509 High Speed, Fast Settling IC Op Amp manufactured by Analog Devices. The device features a minimum slew rate of 100V/µs and settles to within 0.01% in as little as 2.5µs. It is designed for use with high-speed D/A or A/D converters where conversion time is limited by amplifier settling time.
| Slew Rate (Unity Gain) | 100 V/µs min |
|---|---|
| Settling Time (0.01%) | 2.5 µs max |
The AD509S operates from -55°C to +125°C.
All devices are supplied in the TO-99 package.
