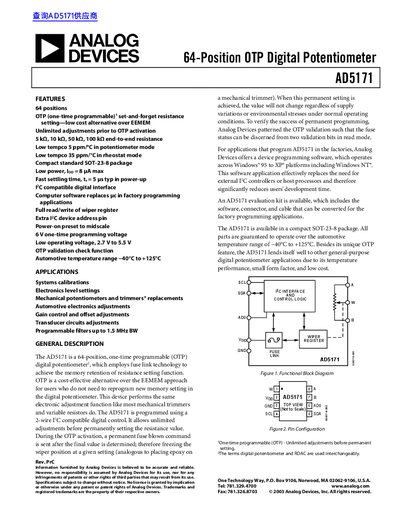

The AD5171 is a 64-position, one-time programmable (OTP) digital potentiometer that uses fuse link technology to achieve memory retention of resistance setting function. OTP is a cost-effective alternative over the EEMEM approach for users who do not need to reprogram new memory setting in the digital potentiometer. This device performs the same electronic adjustment function like most mechanical trimmers and variable resistors.
The AD5171 is a 64-position, one-time programmable (OTP) digital potentiometer that employs fuse link technology to achieve permanent memory retention of resistance settings. It serves as a low-cost alternative to EEPROM-based approaches for applications requiring fixed adjustments after initial setup, such as system calibration and automotive electronics.
| Number of Positions | 64 positions |
|---|---|
| End-to-End Resistance Options | 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ |
| Operating Temperature Range | -40°C to +125°C |
| Supply Voltage Range (VDD) | 2.7 V to 5.5 V |
| Package Type | SOT-23-8 |
| Interface Type | I2C compatible digital interface |
It is a 64-position, one-time programmable (OTP) digital potentiometer that employs fuse link technology to achieve memory retention of resistance settings.
During OTP activation, a permanent fuse blown command is sent after the final value is determined, freezing the wiper position so it will not change regardless of supply variations.
Yes, Analog Devices offers device programming software that operates across Windows 95 to XP platforms.
