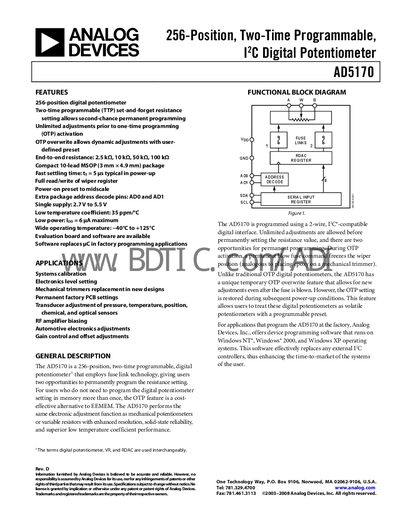

The AD5170 is a 256-position two-time programmable I2C digital potentiometer, which offers four end-to-end resistance selections of 2.5 kΩ, 10 kΩ, 50 kΩ, and 100 kΩ.
The AD5170 is a 256-position, two-time programmable (TTP) digital potentiometer that employs fuse link technology. It offers unlimited adjustments prior to one-time programming (OTP) activation and allows for dynamic adjustments even after the OTP setting has been permanently set via an overwrite feature.
The device features end-to-end resistance options of 2.5 kΩ, 10 kΩ, 50 kΩ, and 100 kΩ in a compact 10-lead MSOP package. It operates with a single supply voltage ranging from 2.7 V to 5.5 V and includes features such as fast settling time (typical 5 µs) and low power consumption.
| End-to-end resistance options | 2.5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ |
|---|---|
| Package type | Compact 10-lead MSOP (3 mm x 4.9 mm) |
| Settling time | 5 µs typical in power-up |
| Supply voltage range | 2.7 V to 5.5 V |
| Temperature coefficient (2.5 kΩ) | 35 ppm/°C |
| Operating temperature range | -40°C to +125°C |
The device allows two opportunities for permanent programming using its Two-Time Programmable (TTP) feature.
The AD5170 is available in 2.5 kΩ, 10 kΩ, 50 kΩ, and 100 kΩ end-to-end resistance options.
