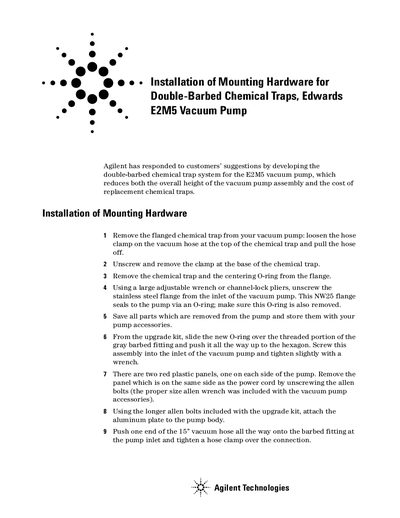

Agilent E2M5 Vacuum Pump Double-Barbed Chemical Trap Installation Guide

About this manual

This document details the installation of a double-barbed chemical trap system designed for the Edwards E2M5 vacuum pump. The upgrade kit reduces the overall height of the assembly and lowers the cost of replacement traps compared to previous systems.

The guide covers two main procedures: installing the mounting hardware on the pump inlet and attaching the chemical trap. It includes steps for removing the original flanged trap, replacing it with a gray barbed fitting using an O-ring, and securing the new aluminum plate to the pump body.

What's inside

• Installation of Mounting Hardware
• Removal of Flanged Chemical Trap
• Installation of Double-Barbed Chemical Trap
• Quick Reference Guide

Frequently asked questions

What is the purpose of the double-barbed chemical trap system for the E2M5 vacuum pump?

The system reduces both the overall height of the vacuum pump assembly and the cost of replacement chemical traps.

What size vacuum hose is required for the installation?

You must use a 15" vacuum hose to connect to the barbed fitting at the pump inlet.

How should the chemical trap be oriented during installation?

You must hold the trap so that the elbow is at the bottom before pressing it into the clamps.
