This document is an introduction to the BC846-BC850 NPN SILICON TRANSISTOR by UNISONIC TECHNOLOGIES CO., LTD. The product is suitable for automatic insertion in thick and thin-film circuits and has switching and amplifier application characteristics.

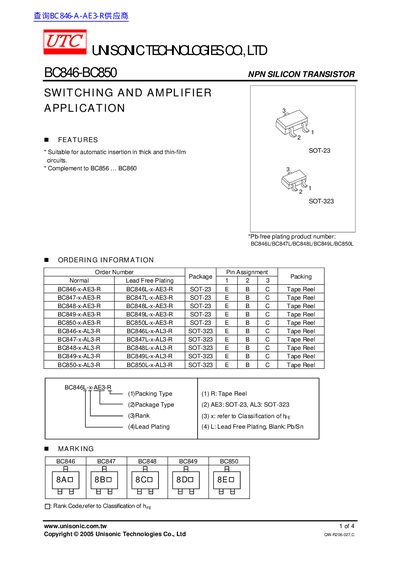

This document is a technical datasheet for the BC846 through BC850 series of NPN silicon transistors manufactured by Unisonic Technologies. The devices are suitable for automatic insertion in thick and thin-film SOT-23 circuits and serve as complements to other transistor series.
| Product Type | NPN Silicon Transistor |
|---|---|
| Application | Switching and Amplifier |
| Package Type SOT-23 | SOT-23 |
| Collector Current (DC) | 100 mA |
| Junction Temperature | +150 °C |
| Current Gain Bandwidth Product | 300 MHz |
The maximum DC Collector Current (Ic) is rated at 100 mA.
The devices are available in SOT-23 and SOT-323 packages, indicated by the suffixes AE3 and AL3 respectively.
The absolute maximum rating for Junction Temperature (Ts) is +150 °C.
