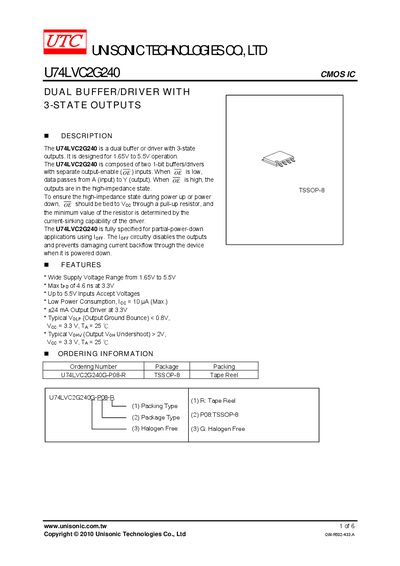

This document is the datasheet of U74LVC2G240. U74LVC2G240 is a dual buffer or driver with 3-state outputs produced by UNISONIC TECHNOLOGIES CO., LTD. It is designed for 1.65V to 5.5V operation. U74LVC2G240 consists of two 1-bit buffers/drivers with separate output-enable (OE) inputs. When OE is low, data passes from A (input) to Y (output). When OE is high, the outputs are in the high-impedance state. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pull-up resistor, and the minimum value of the resistor is determined by the current-sinking capability of the driver. U74LVC2G240 is fully specified for partial-power-down applications using IOFF. The IOFF circuitry disables the outputs and prevents damaging current backflow through the device when it is powered down.
The U74LVC2G240 is a dual buffer or driver with 3‑state outputs, composed of two 1‑bit buffers/drivers. It operates from 1.65 V to 5.5 V and offers features such as a wide supply range, low power consumption, and a 24 mA output driver at 3.3 V.
The datasheet provides absolute maximum ratings, recommended operating conditions, electrical characteristics, and test circuit waveforms. Ordering information lists the part number U74LVC2G240G‑P08‑R in a TSSOP‑8 package, and a disclaimer from UTC clarifies liability and usage restrictions.
| Supply Voltage Range | 1.65 V to 5.5 V |
|---|---|
| Maximum Propagation Delay | 4.6 ns at 3.3 V |
| Output Driver Current | +24 mA at 3.3 V |
| Quiescent Supply Current | 10 µA (max) |
| Package Type | TSSOP‑8 |
It operates from 1.65 V up to 5.5 V.
The device contains two 1‑bit buffers/drivers.
It can source up to +24 mA at a 3.3 V supply.
The part is supplied in a TSSOP‑8 package.
