LM358 is a dual operational amplifier produced by Unisonic Technologies Co., Ltd. It has high gain, internal frequency compensation, wide power supply range, input common mode voltage range including ground and large DC voltage gain.
The LM358 is a dual, high‑gain, internally frequency‑compensated operational amplifier that can operate from a single supply or split supplies. It offers a wide supply range, ground‑referenced input common‑mode voltage, and large DC voltage gain.

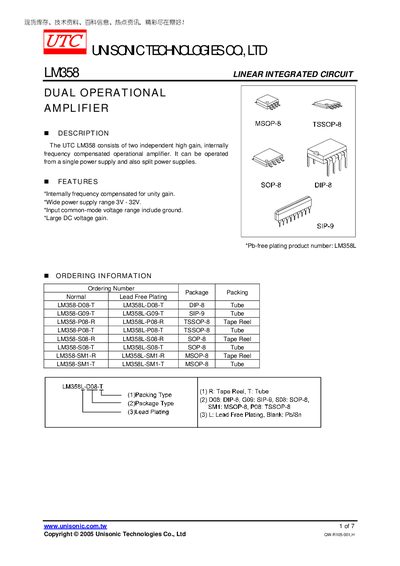

The document lists ordering numbers for various lead‑free plated packages (DIP‑8, SIP‑9, SOP‑8, MSOP‑8, TSSOP‑8, etc.), absolute maximum ratings, detailed electrical characteristics, and typical performance curves such as gain versus frequency and output current capabilities.
| Supply Voltage Range | 3 V – 32 V |
|---|---|
| Input Common‑Mode Voltage Range | Includes ground |
| Maximum Power Dissipation (SOP‑8) | 280 mW |
| Junction Temperature (max) | +125 °C |
| Operating Temperature Range | 0 °C – +70 °C |
| Input Offset Voltage (typ) | 2.9 mV |
The LM358 operates from 3 V up to 32 V.
The SOP‑8 package can dissipate up to 280 mW.
