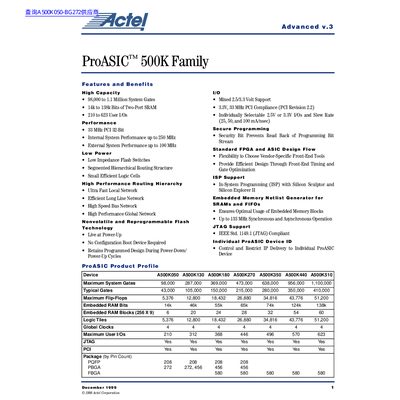

This document introduces the features and characteristics of the Advanced v.3 ProASIC™ 500K Family products produced by Actel Corporation, including high capacity, performance, low power consumption, high performance routing hierarchy, non-volatile and re-programmable flash technology, I/O, secure programming, standard FPGA and ASIC design flow, ISP support, embedded memory netlist generator, and JTAG support
The ProASIC 500K family combines ASIC advantages with programmable device benefits through its nonvolatile Flash technology, offering seven devices ranging from 98k to 1.1M system gates. These devices support mixed 2.5/3.3 volt operation and include up to 138k bits of embedded two-port SRAM.
| System Gates Range | 98,000 to 1.1 Million |
|---|---|
| Embedded SRAM Capacity | 14k to 138k Bits |
| User I/Os Range | 210 to 623 |
| Maximum Clock Frequency (Internal) | 250 MHz |
| PCI Compliance | 33 MHz PCI 32-Bit |
| Technology Process | 4LM Flash-based 0.25p channel length LVCMOS |
The A500K510 device offers a maximum of 1,100,000 system gates.
No, it is live at power-up and requires no configuration boot device.
The devices support mixed 2.5/3.3 volt operation with individually selectable I/Os.
