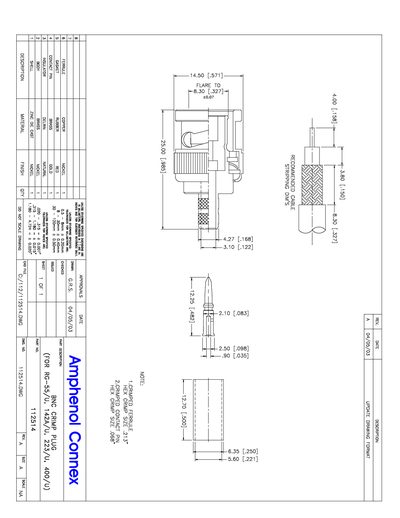

This document is a technical drawing for the Amphenol Connex part number 112514, which is a BNC crimp plug. It provides detailed dimensional information and specifies the materials used for each component of the assembly.
The drawing includes recommended cable stripping dimensions for compatibility with various RG-series cables (RG-58/U, 142A/U, 223/U, 400/U). It also lists specific requirements for the shell, insulator, gasket, ferrule, and contact pin.
| Shell Material | ZINC DIE CAST NICKEL |
|---|---|
| Insulator Material | DELRIN NATURAL |
| Ferrule Material | COPPER NICKEL |
| Gasket Color | RED |
| Contact Pin Material | BRASS NICKEL |
| Compatible Cables | RG-58/U, 142A/U, 223/U, 400/U |
| Ferrule Hex Crimp Size | .213" |
The recommended hex crimp size for the crimped ferrule is .213 inches.
The drawing lists compatibility with RG-58/U, 142A/U, 223/U, and 400/U cables.
