The document describes the MCCF33095 and MC33095, which are regulator control integrated circuits designed for use in automotive 12V alternator charging systems. These devices provide control for a broad range of 12V alternator charging systems and have internal detection and protection features for harsh automotive environments.

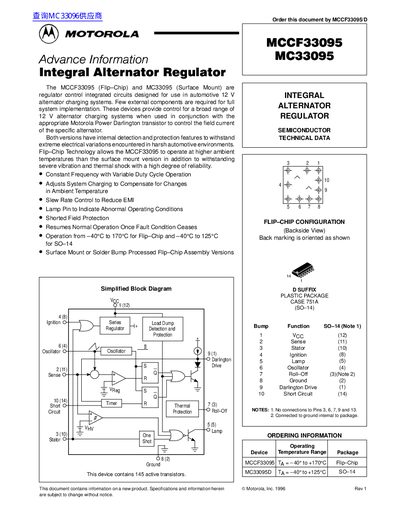

The document describes the MCCF33095 (Flip-Chip) and MC33095 (Surface Mount) integrated circuits, which are regulator controls for use in automotive 12 V alternator charging systems. These devices provide control for a broad range of systems when used with an appropriate Motorola Power Darlington transistor to control the field current.
| Supply Voltage (Voc and VIGN) | -9.0 to 24 v |
|---|---|
| Operating Temperature Range (Flip-Chip) | -40° to +170°C |
| Operating Temperature Range (SO-14) | -40° to +125°C |
| Junction Temperature (Flip-Chip) | 170 °C |
The device operates from -40°C to +170°C.
The maximum rating is 24 V.
