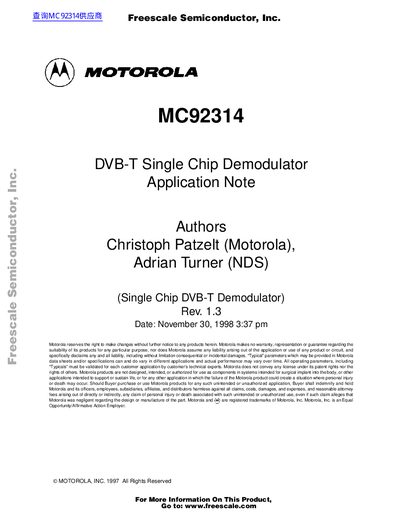

This document mainly introduces the application of MOTOROLA MC92314 DVB-T single chip demodulator
The document provides a comprehensive technical guide for the Motorola/Freescale MC92314 Single Chip DVB-T Demodulator. It outlines the chip's capabilities within the DVB-T standard, including support for QPSK, 16-QAM, and 64-QAM modulation schemes, as well as automatic lock onto various guard interval lengths.
The guide details the internal architecture of the device, specifically the OFDM demodulator block and the Forward Error Correction (FEC) block. It includes extensive information on pinouts for both QFP and BGA packages, I2C register maps, tuner interface characteristics, and initialization procedures to speed up acquisition time.
| Process Technology | 0.35mm CMOS process at 3.3 V |
|---|---|
| Supported Modulation Schemes | QPSK, 16-QAM and 64-QAM |
| Guard Interval Support | '/9, '/1g, '/g, '4' |
| Data Input Format | 8 Bit TTL compatible 2's complement or offset binary |
| Processing Speed | One block of 2048 complex samples in 224 ms |
| FFT Input Wordlength | 8 bit |
The device supports QPSK, 16-QAM and 64-QAM modulation schemes.
It takes 224 ms to process one block of 2048 complex samples.
