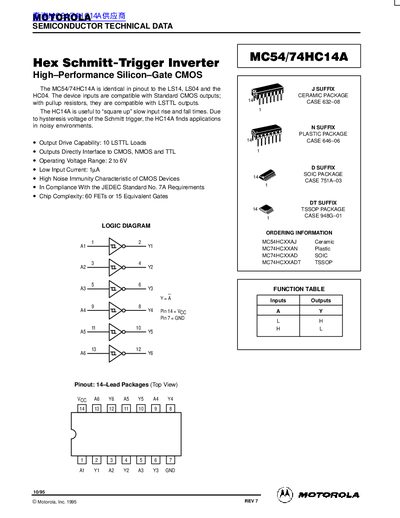

This datasheet provides the characteristics parameters of MC54/74HC14A, including pin definition, package information, logic function table, ordering information, etc.
This document provides technical data for the MC54/74HC14A, a hex inverting logic gate with Schmitt-trigger inputs. The device is designed to square up slow input rise and fall times and offers high noise immunity suitable for noisy environments. It features compatibility with Standard CMOS outputs and LSTTL outputs when used with pull-up resistors.
| Operating Voltage Range | 2 to 6V |
|---|---|
| Output Drive Capability | 10 LSTTL Loads |
| Chip Complexity | 60 FETs or 15 Equivalent Gates |
| Operating Temperature Range | -55 to +125 °C |
It is useful to square up slow input rise and fall times.
Yes, inputs are compatible with LSTTL outputs when used with pullup resistors.
