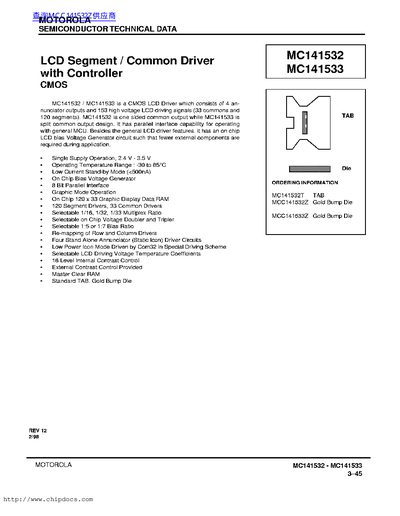

The Motorola MC141532 and MC141533 are CMOS LCD driver chips designed to drive 120 segments and 33 commons. The MC141532 features a one-sided common output, while the MC141533 utilizes a split common output design. Both devices include an on-chip bias voltage generator to reduce external component requirements.
| Supply Voltage Range | 2.4 V to 3.5 V |
|---|---|
| Operating Temperature Range | -30 to +85 °C |
| Stand-by Mode Current | < 500 nA |
| Interface Type | 8 Bit Parallel Interface |
| Display Data RAM Size | 120 x 33 Graphic Display Data RAM |
| Segment Drivers | 120 Segment Drivers |
The MC141532 has a one-sided common output design, while the MC141533 uses a split common output design.
No, it features an on-chip LCD bias Voltage Generator circuit to reduce the number of external components required.
