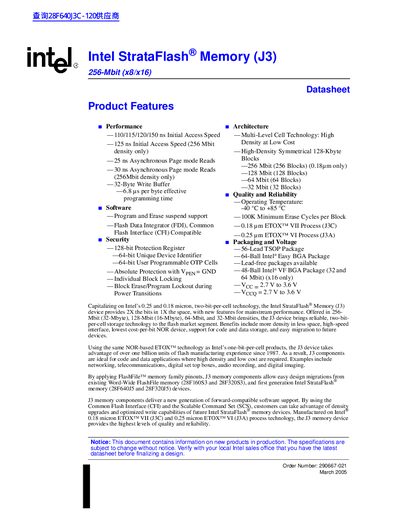

Intel StrataFlash® Memory (J3) 256-Mbit (x8/x16) Datasheet is a datasheet from Intel that describes the features of the J3 device, including capacity, interface, storage technology, etc.
This document is a technical datasheet for the Intel StrataFlash Memory (J3) device series. It details product features including initial access speeds of up to 150 ns and asynchronous page mode reads, as well as software support via Common Flash Interface compatibility.
The datasheet provides comprehensive information on architecture, quality, reliability, packaging options such as TSOP and BGA, and electrical specifications. It includes sections on maximum ratings, operating conditions, DC and AC characteristics, power supply requirements, bus operations, device commands, read/write/erase procedures, security modes, and ordering information.
| Initial Access Speed | 110/115/120/150 ns |
|---|---|
| Asynchronous Page mode Reads (256Mbit) | 30 ns |
| Write Buffer Size | 32-Byte |
| Operating Temperature (J3C) | -40 °C to +85 °C |
| Minimum Erase Cycles per Block | 100K |
| Process Technology (J3C) | 0.18 um ETOX™ VII Process |
| Package Type | 56-Lead TSOP Package |
The J3 device is offered in 256-Mbit, 128-Mbit, 64-Mbit, and 32-Mbit densities.
Yes, it is CFI Compatible and supports Program and Erase suspend.
The operating voltage range is 2.7 V to 3.6 V.
