The NJU7700/01 is a low quiescent current voltage detector featuring high precision detection voltage. The detection voltage is fixed internally with an accuracy of 1.0%. NJU7700 is Nch. Open Drain and NJU7701 of output form is a C-MOS output.

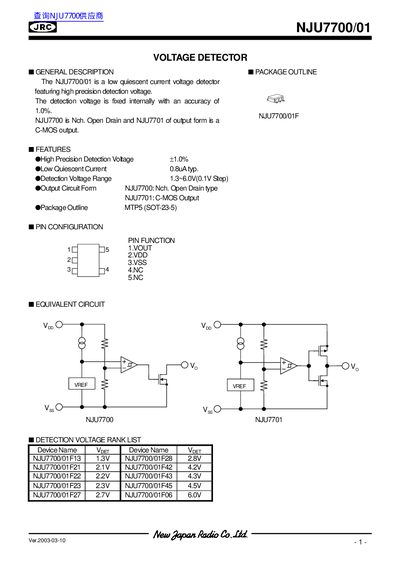

The document is a technical datasheet for the NJU7700/01 series of voltage detectors manufactured by New Japan Radio Co., Ltd. These devices are designed with high precision detection voltage and feature low quiescent current consumption.
The datasheet provides detailed specifications for two variants: the NJU7700, which utilizes an N-channel open-drain output, and the NJU7701, which features a C-MOS output. It includes absolute maximum ratings, electrical characteristics such as detection voltage accuracy and hysteresis, pin configurations, and equivalent circuit diagrams.
| Quiescent Current | 0.8uA typ. |
|---|---|
| Operating Temperature Range | -40 ~ +85 °C |
| Package Outline | MTP5 (SOT-23-5) |
The NJU7701 has a C-MOS output.
The detection voltage ranges from 1.3V to 6.0V in steps of 0.1V.
