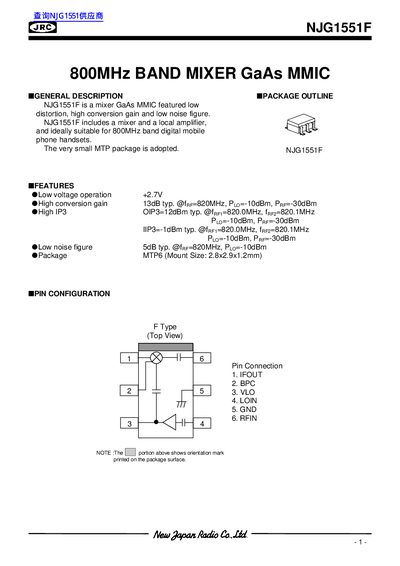

NJG1551F is a 800MHz band mixer GaAs MMIC featured low distortion, high conversion gain and low noise figure. NJG1551F includes a mixer and a local amplifier, and ideally suitable for 800MHz band digital mobile phone handsets. The very small MTP package is adopted.
The NJG1551F is a Gallium Arsenide (GaAs) Monolithic Microwave Integrated Circuit (MMIC) that integrates both a mixer and a local amplifier. It is specifically engineered for use in 800MHz band digital mobile phone handsets, offering low distortion, high conversion gain, and a low noise figure.
| Supply Voltage | +2.7V |
|---|---|
| Conversion Gain (Typical) | 13dB |
| Noise Figure (Typical) | 5dB |
| Input IP3 (Typical) | -1dBm |
| Output IP3 (Typical) | 12dBm |
| Package Type | MTP6 |
It is ideally suitable for use in 800MHz band digital mobile phone handsets.
The MTP6 package measures 2.8x2.9x1.2mm.
